| 步距角精度 | 电阻精度 | 电感精度 | 温度 | 环境温度 | 绝缘等级 | 介电强度 | 转轴径向跳动 | 转轴轴向跳动 |
|---|---|---|---|---|---|---|---|---|
| ±5%(整步，无负载) | ±10% | ±20% | ±80℃Max.(rated current,2 phase on) | -10℃-+50-℃ | 最小100MΩ.,500VDC | 500VAC 1分钟 | 0.06Max.(450 g-load) | 0.08Max.(450 g-load) |
| 单出轴 | 双出轴 | 电流(A) | 电阻(Ω) | 电感(mH) | 静态力矩(N-m) | 引线 | 重量(Kg) | 机身长(mm) |
|---|---|---|---|---|---|---|---|---|
| 57HS41H-1006A | 57HS41H-1006B | 1 | 5.7 | 5.4 | 0.39 | 6 | 0.47 | 41 |
| 57HS41H-2006A | 57HS41H-2006B | 2 | 1.4 | 1.4 | 0.39 | 6 | 0.47 | 41 |
| 57HS41H-2804A | 57HS41H-2804B | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 0.47 | 41 |
| 57HS51H-1006A | 57HS51H-1006B | 1 | 6.6 | 8.2 | 0.72 | 6 | 0.65 | 51 |
| 57HS51H-2006A | 57HS51H-2006B | 2 | 1.65 | 2.2 | 0.72 | 6 | 0.65 | 51 |
| 57HS51H-2804A | 57HS51H-2804B | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 0.65 | 51 |
| 57HS56H-1006A | 57HS56H-1006B | 1 | 7.4 | 10 | 0.9 | 6 | 0.7 | 56 |
| 57HS56H-2006A | 57HS56H-2006B | 2 | 1.8 | 2.5 | 0.9 | 6 | 0.7 | 56 |
| 57HS56H-2804A | 57HS56H-2804B | 2.8 | 0.9 | 2.5 | 1.26 | 4 | 0.7 | 56 |
| 57HS76H-1006A | 57HS76H-1006B | 1 | 8.6 | 14 | 1.35 | 6 | 1 | 76 |
| 57HS76H-2006A | 42H47H-0406B | 2 | 2.25 | 3.6 | 1.35 | 6 | 1 | 76 |
| 57HS76H-2804A | 57HS76H-2804B | 2.8 | 1.13 | 3.6 | 1.89 | 4 | 1 | 76 |

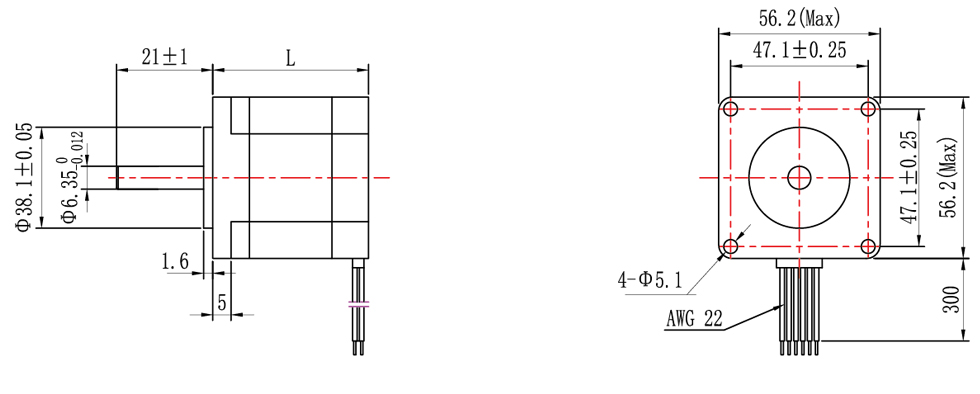

机械尺寸
绕线图
